Three In One 24000BPH Bottled Water Filling Machines
Three In One Unit For Bottle Washing, Filling And Capping Bottled Water Filling Machine
Capacity: A-15000 bottles/hour ----54000 bottles/hour (500ml)
Applicable bottle type 200ml-1500ml
Capacity: B-1500 bottles/hour-----8000 bottles/hour (5L)
Applicable bottle type 3L-10L
Filling valve: Gravity mechanical valve/imported flow meter valve is used according to customer needs

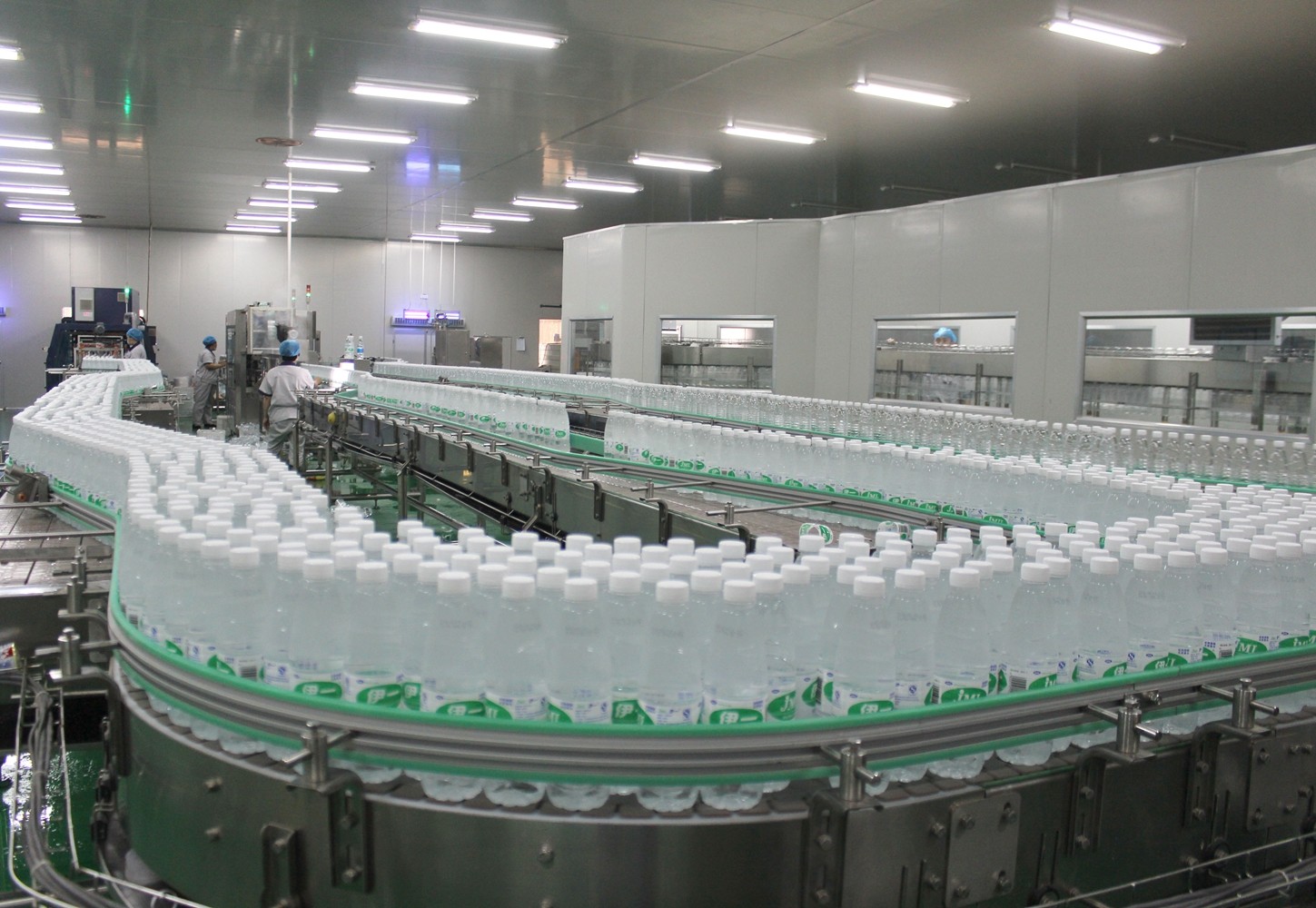

This production line is suitable for packaging and producing soft drinks, such as PET bottled mineral water and purified water. The core equipment is a three-in-one equipment for bottle washing, filling and capping.
Specifications of Bottled Water Filling Machine
| Model | Number of Bottle Rinsing Clip | Number of Filling Valve | Number of Capping Head | Capacity (BPH) | Bottle Size | Dimensions (mm) | Weight (Kg) | Remark |
| Diameter (mm) | Height (mm) | Volume (ml) |
| DGY06 | 18 | 18 | 6 | 8000 | Φ60-Φ96 | 180-315 | 350-1500 | 2480x1980x2600 | 4000 | All-in-one Type |
| DGY08 | 24 | 24 | 8 | 12000 | Φ60-Φ96 | 180-315 | 350-1500 | 2800x2400x2600 | 6000 | All-in-one Type |
| DGY10 | 32 | 32 | 10 | 16000 | Φ60-Φ96 | 180-315 | 350-1500 | 3300x3000x2700 25002500 3085 | 7200 | All-in-one Type |
| DGY12 | 40 | 40 | 12 | 20000 | Φ60-Φ96 | 180-315 | 350-1500 | 3900x3180x2700 | 9000 | All-in-one Type |
| DGY15 | 50 | 50 | 15 | 24000 | Φ60-Φ96 | 180-315 | 350-1500 | 5300x4200x2900 | 10000 | All-in-one Type |
| DGY15 | 60 | 60 | 15 | 28000 | Φ60-Φ96 | 180-315 | 350-1500 | 5700x4600x2900 | 12000 | All-in-one Type |
| DGY18 | 72 | 72 | 18 | 32000 | Φ60-Φ96 | 180-315 | 350-1500 | 6600x5100x2900 | 15000 | All-in-one Type |
Features
The rinse clamp is made of stainless steel to avoid contamination of the bottleneck.
All parts in contact with liquid are manufactured by quality stainless steel, for example, the filling valves are made of stainless steel 316.
The use of pressure type filling system helps ensure high filling speed, precision and quality.
There are detectors for bottle feeding condition and blocking condition. Hence, when there is no bottle to feed or the bottles are blocked, the machine will slow down and stop automatically.
Products and Product Advantages
Our products are eco-friendly and safe to use. They mainly include water production lines, juice production lines, tea drink production lines, water filling machines, juice filling machines, tea filling machines, 36000 BPH hot filling production lines, 40000 BPH bottled water production lines, 30000 BPH carbonated beverage production lines, ultra-clean filling production lines, and 48000 c/h filling production lines.
These products use automated operation systems which greatly improve the performance and productivity of our packaging machines. They have the features of being multifunctional, have a standard design, modularization, a digital control system, they are highly compatible, accurate, flexible, and have high efficiency.
Product Tags:
|
|
Three In One 24000 BPH Bottled Water Filling Machines Images
|
